Maintenance Tracking: Setup

Maintenance Tracking: Setup

Avianis offers integrations with CAMP and Flightdocs/Veryon.

This guide outlines:

  • the functionality of the maintenance integrations;

  • how to setup the integration;

  • overview of all settings; and

  • how to test the integration

See related articles:

Aircraft Setup: Add Aircraft Engines and Components

INTEGRATION FUNCTIONALITY

The connection between Avianis and the maintenance provider supports the following:

  • A daily automatic and manual push of all aircraft, engine times, and cycles

  • A daily push of APU times (if applicable)

  • A daily and manual pull of inspections items and discrepancies

INTEGRATION SETUP

First, contact the maintenance integration provider to enable the aircraft for integration with Avianis and to receive web service credentials (username and password). Below is the contact information.

Flightdocs: They do not need to be contacted. The credentials are the same as the web login credentials.

CAMP: support@campsystems.com or 877-411-2267

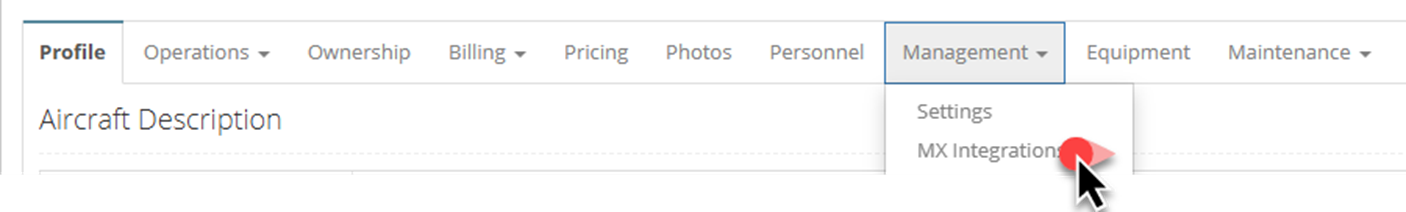

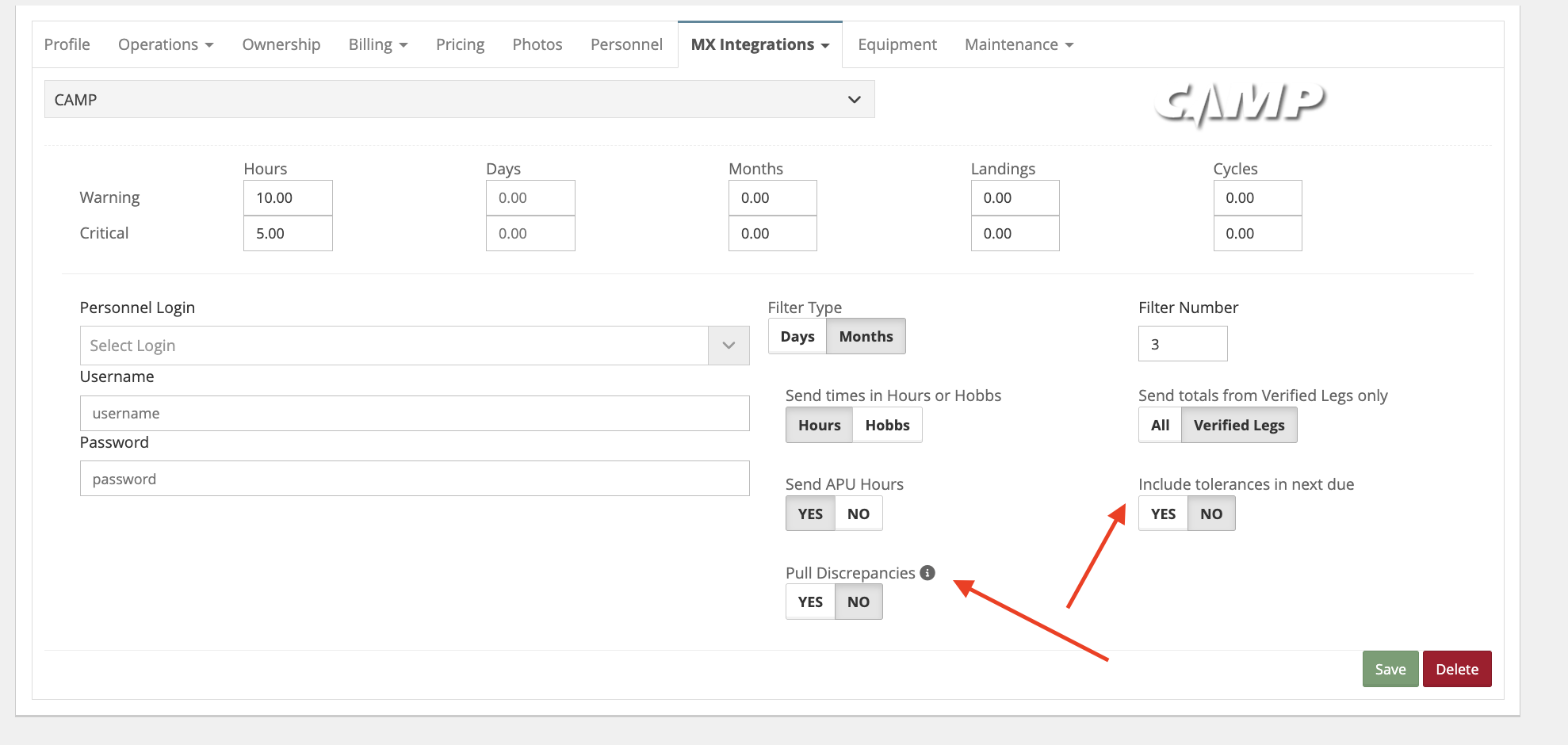

Next, access the aircraft profile, click on the maintenance tab > MX integration. Select the applicable maintenance partner in the drop-down.

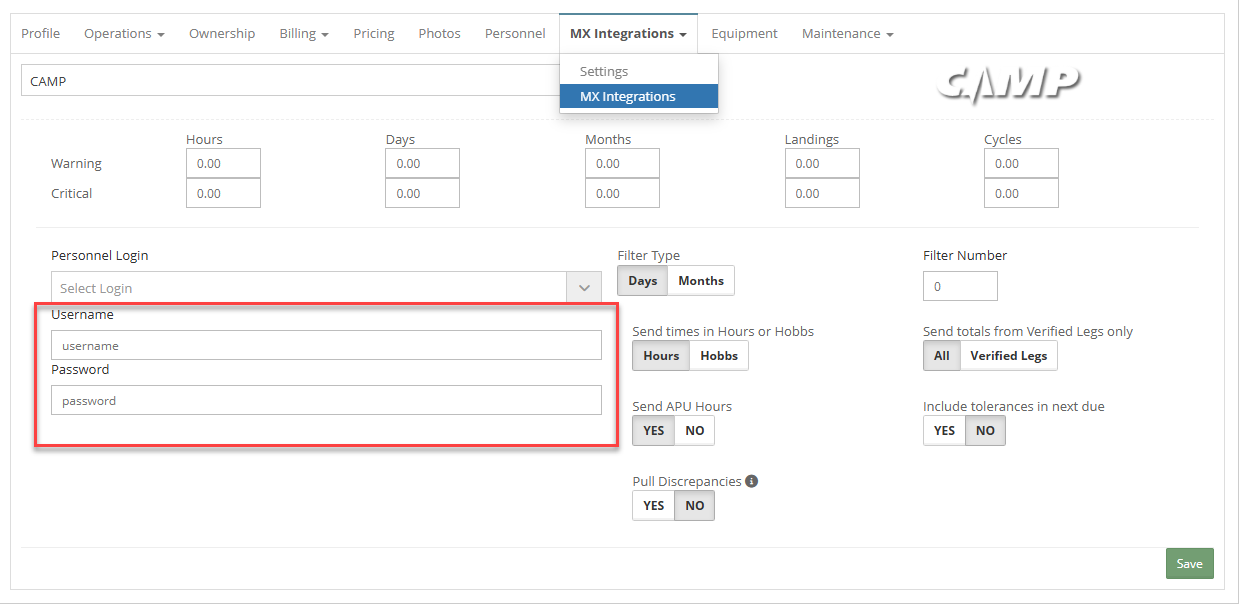

Then, input the web service credentials provided by the maintenance partner and click "Save."


INTEGRATION SETTINGS

Below is an overview of all the integration-related settings:

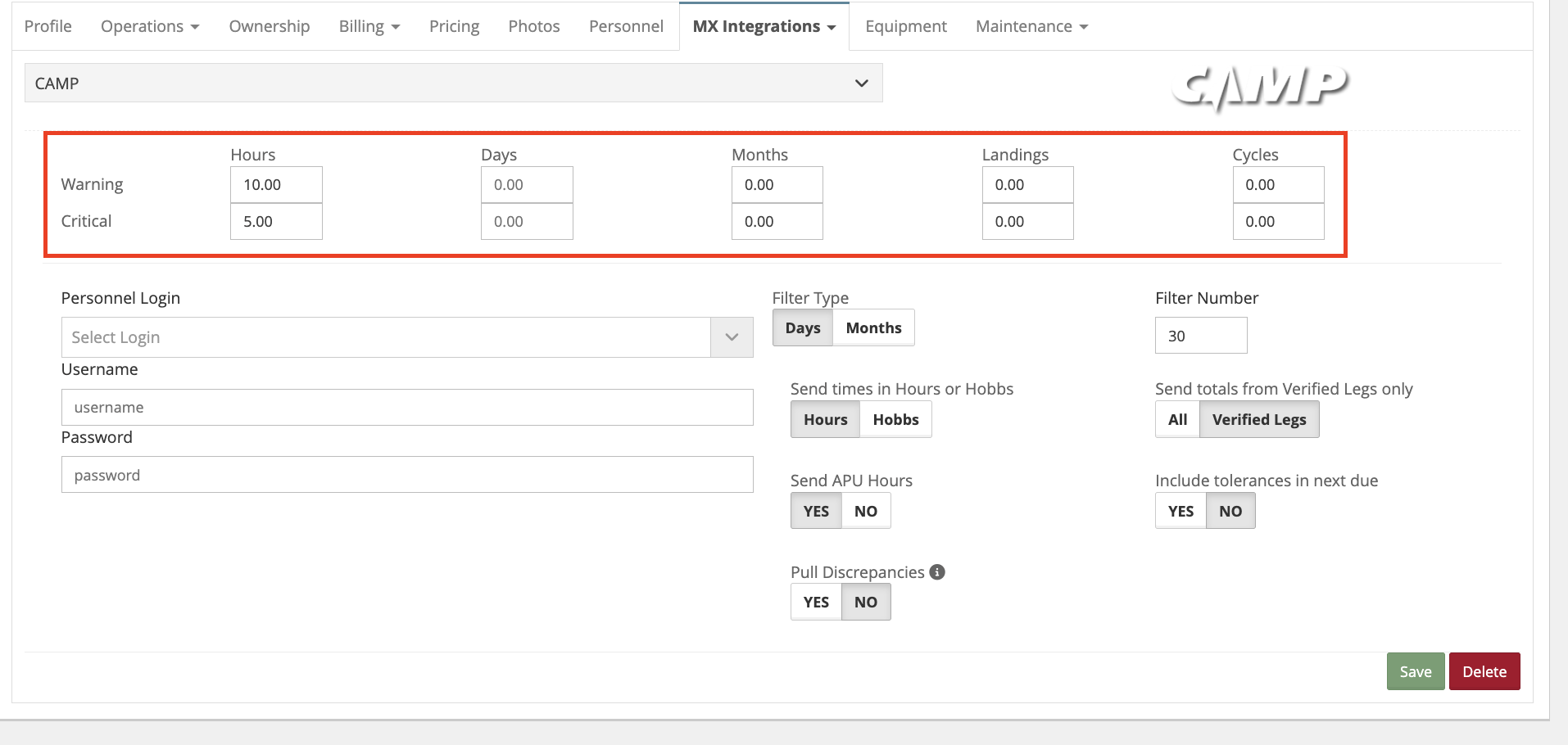

Warning/Critical Thresholds

The warning and critical values are the values that are set on the pulled-in inspection item which correlates to how the Feasibility and Tools > Aircraft section flags for inspection items. For example, if the warning value is set to 10 hours and critical is set to 5 hours, if an inspection item is due in 7 hours, it will be displayed as a warning item until there are 5 hours remaining.


Filter Type

The options are days or months. This determines what inspection items are pulled in based on the duration of time.

Filter Number

Paired with Filter Type, set the number to determine the time frame that should be considered when pulling inspection items. For example, with a Filter Type set to Months and Filter Number set to 3, it will pull all inspection items with a due time within the 3 month time period.

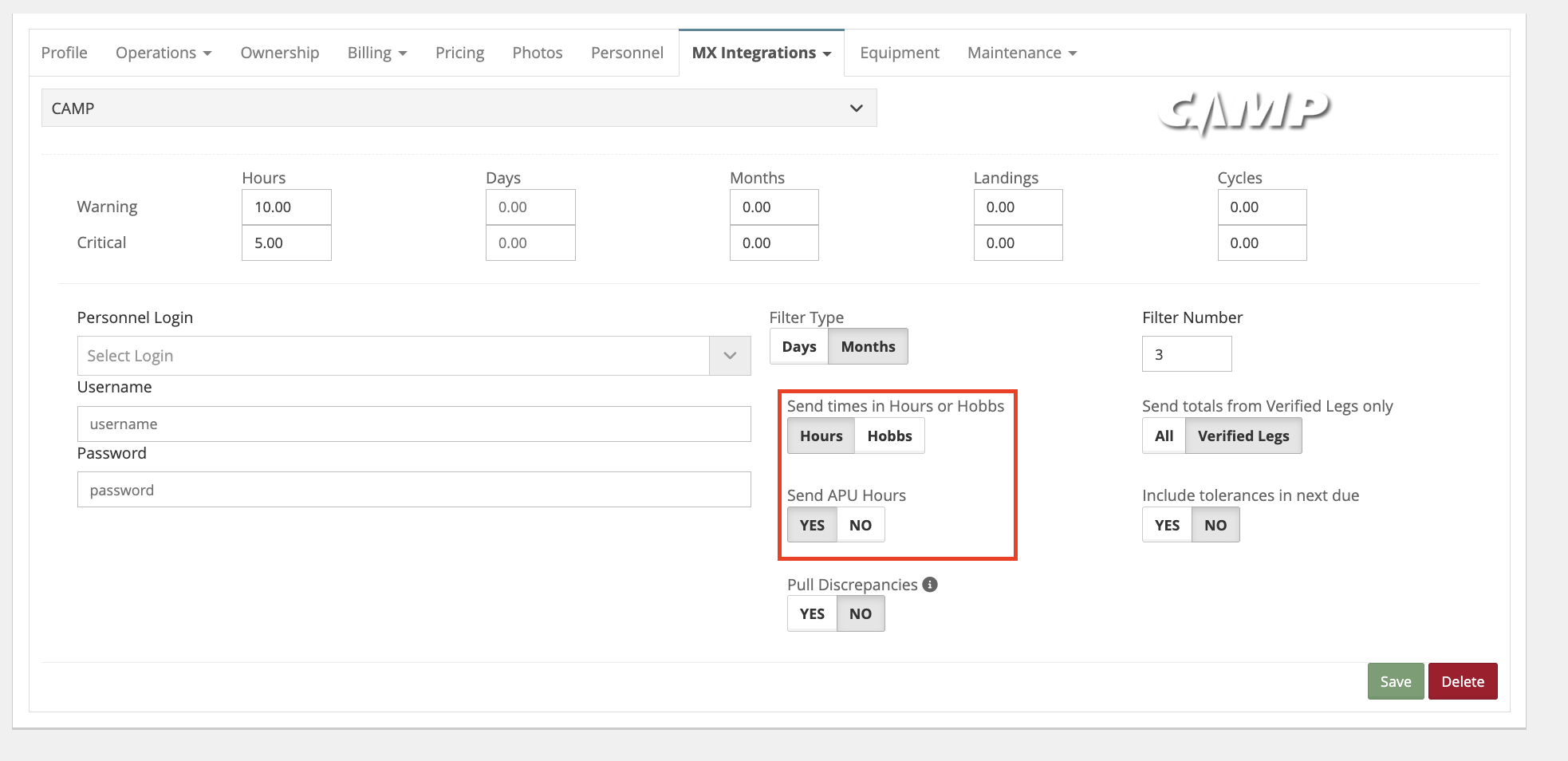

Send times in Hours or Hobbs

Set whether Hours or Hobbs times will push to the maintenance partner.

Send APU Hours

Set whether or not the APU hours should be sent to the maintenance partner. Yes to send, no to not send.

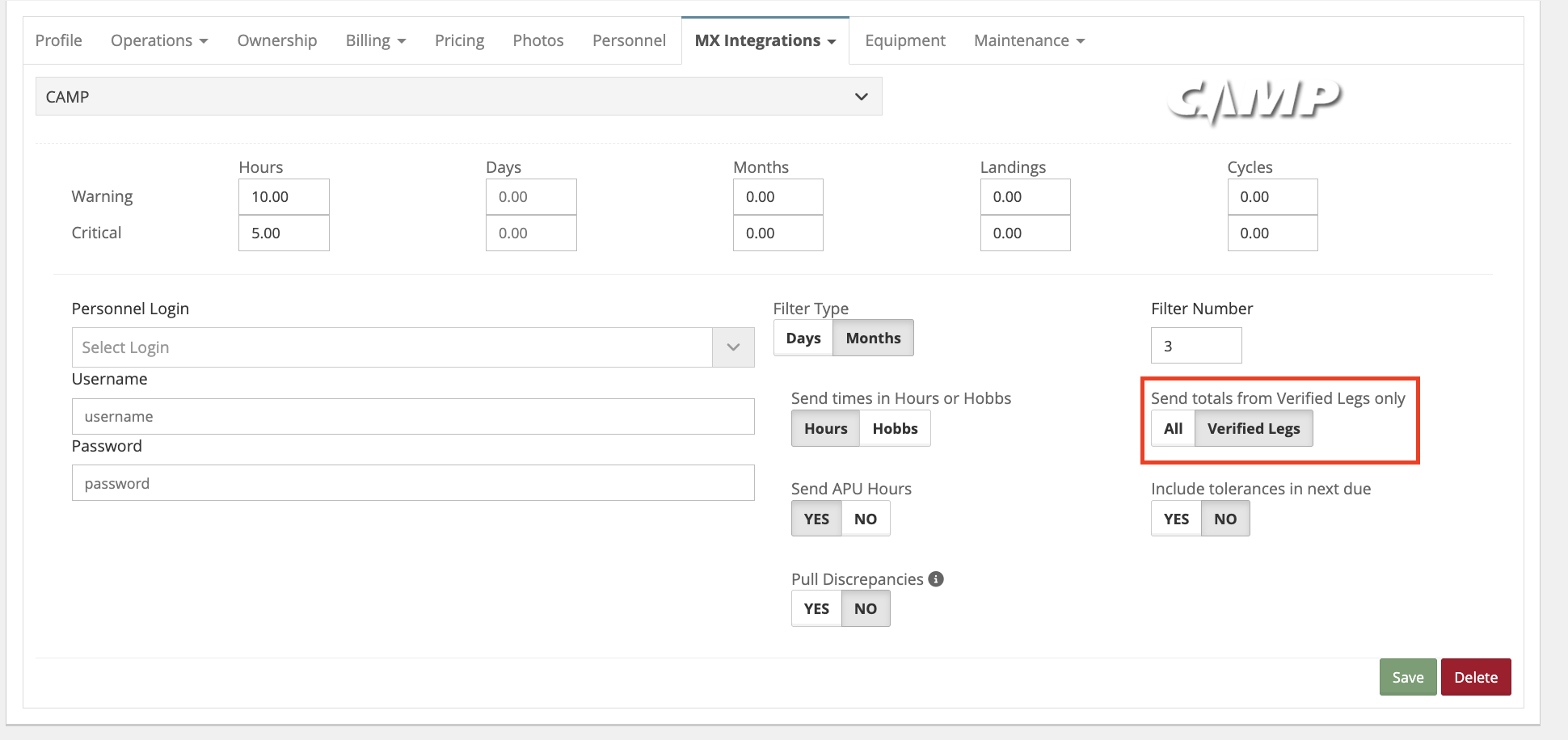

Send totals from Verified Legs Only

Set whether the times should send for All legs or Verified Legs only. If all is selected, any leg that has been logged will be included in the total time. If Verified Legs is selected, the leg status must be set to verified within the trip in addition to the leg being logged for the flight time to be included in the accumulative time.

It is recommended this setting be carefully considered. Entering any logged times without being verified could result in incorrectly entered data being delivered to your maintenance provider.


Include tolerances in the next due (CAMP Only)

The integration gives the user the ability to include tolerances when calculating the next due items. If YES is selected, the time calculated for the next due item will not include a tolerance period.

Pull Discrepancies (CAMP Only)

The integration allows operations to set whether to pull discrepancies from CAMP into Avianis for greater visibility to Operations. Discrepancies continue to be managed in CAMP and the information updates accordingly in Avianis.

When the toggle is set to "Yes" a second setting appears called "Discrepancy Types". From here the options are to pull all discrepancies or to only pull deferred discrepancies. When set to All, then the entire list of discrepancies is pulled. If set to Deferred, then all discrepancies are pulled with the ND discrepancy types filtered out.

When Pull Discrepancies is enabled, then discrepancies are pulled at the top of every hour and displayed on the Maintenance > Discrepancy search page. The CAMP API endpoint used for this call is GetAircraftDiscrepancies and matches against the Control Number field on the discrepancy.


  • If the discrepancy is pulled into Avianis and at the next sync if the discrepancy is no longer found or the API pulls in an RTSState then the Closed checkbox is marked on the discrepancy, but no closed date is set.

  • Discrepancies manually created by the user in Avianis are not affected by the sync.

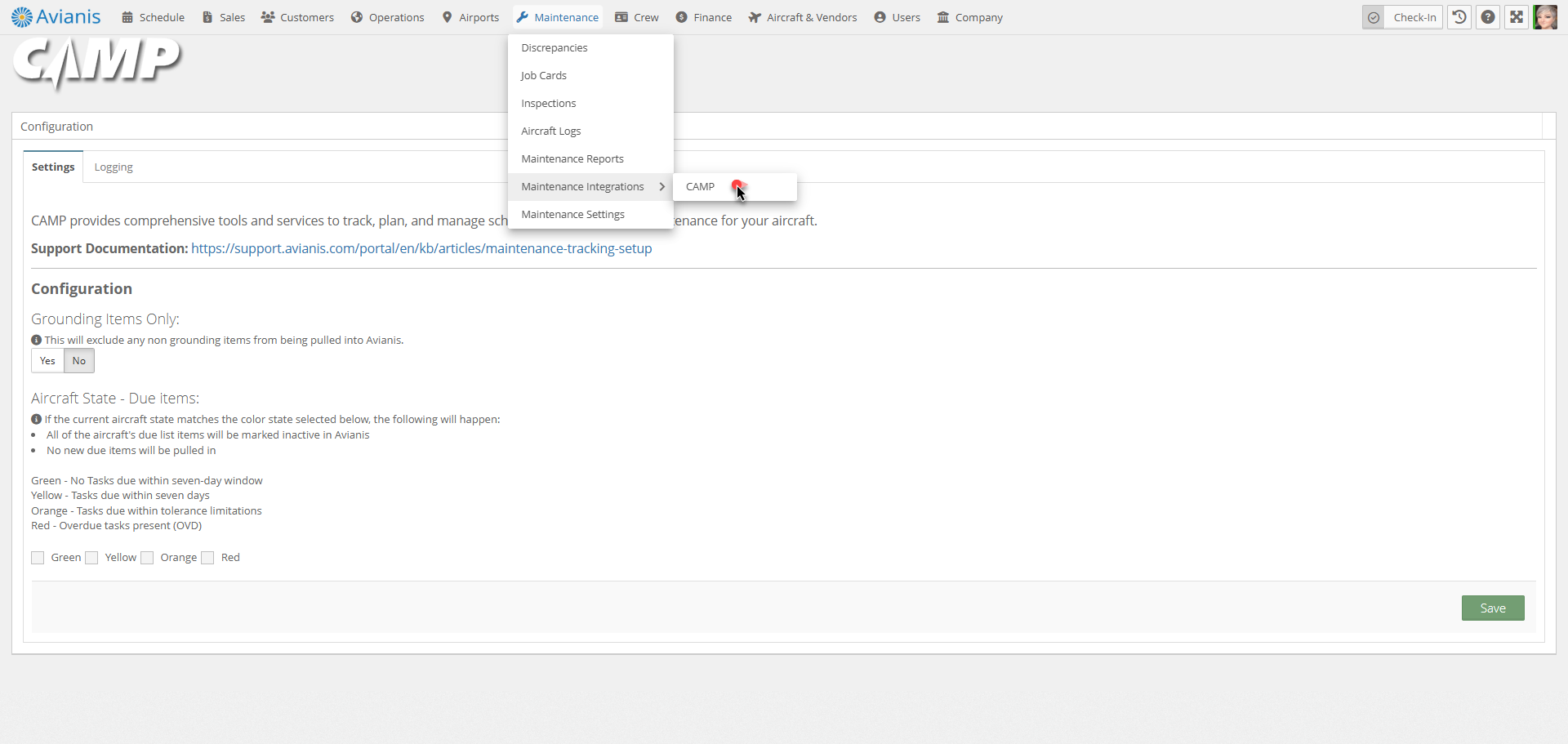

Due List Filters (CAMP Only)

This setting can be found and configured on the Camp integration page.
  1. Go to Maintenance > Maintenance Integrations > Camp in the main navigation
The integration has included 2 filters for filtering out due list items.

  1. Grounding Items Only

     When Yes is selected, it will exclude any non grounding items from being pulled into Avianis.
  1. Aircraft State - Due items
     If the current aircraft state matches the color state selected below, the following will happen:
    • All of the aircraft's due list items will be marked inactive in Avianis
    • No new due items will be pulled in

The Logging tab will display the integration logs and can be used for troubleshooting or for additional awareness.
More information can be found: Maintenance Tracking: Setup

TEST THE INTEGRATION

After settings are configured and the integration is connected, there are two ways to confirm its working:

Pull Due Items

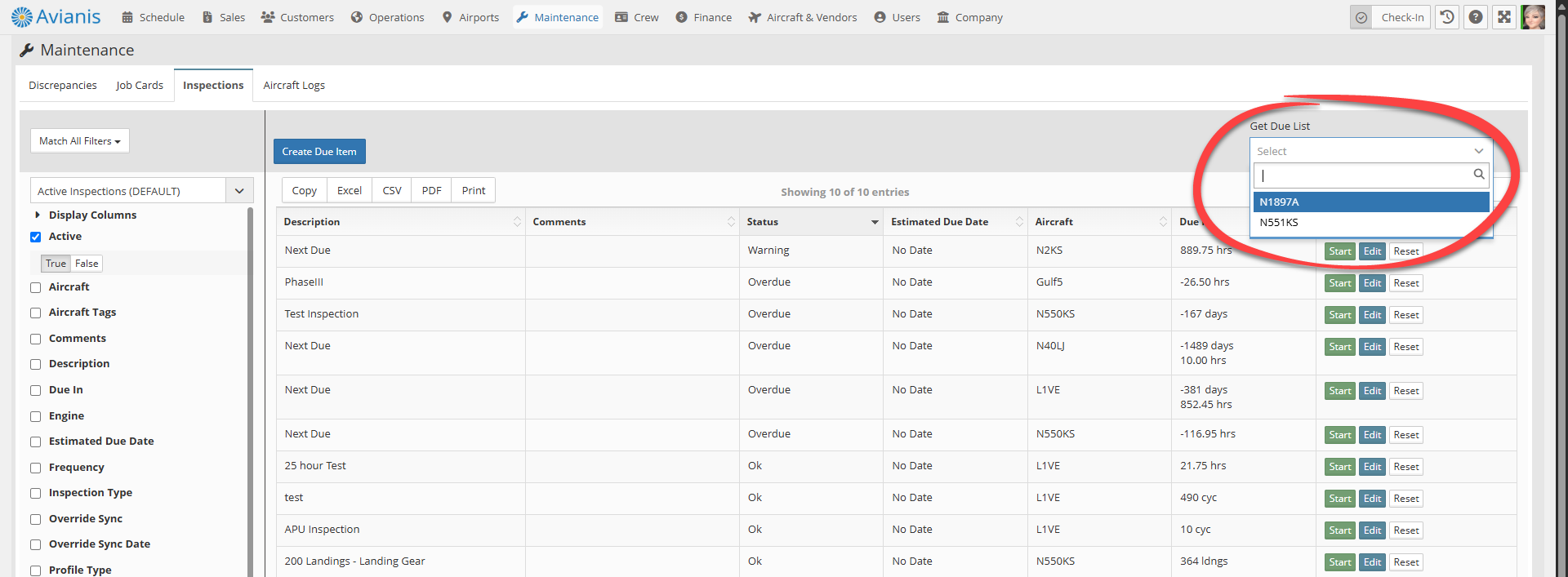

  1. Access Maintenance > Inspections

  2. Pull a Get Due List by selecting a tail

3. Access the activity feed located at the bottom right-hand side of the aircraft profile to review the results of the data pull.

Push Times

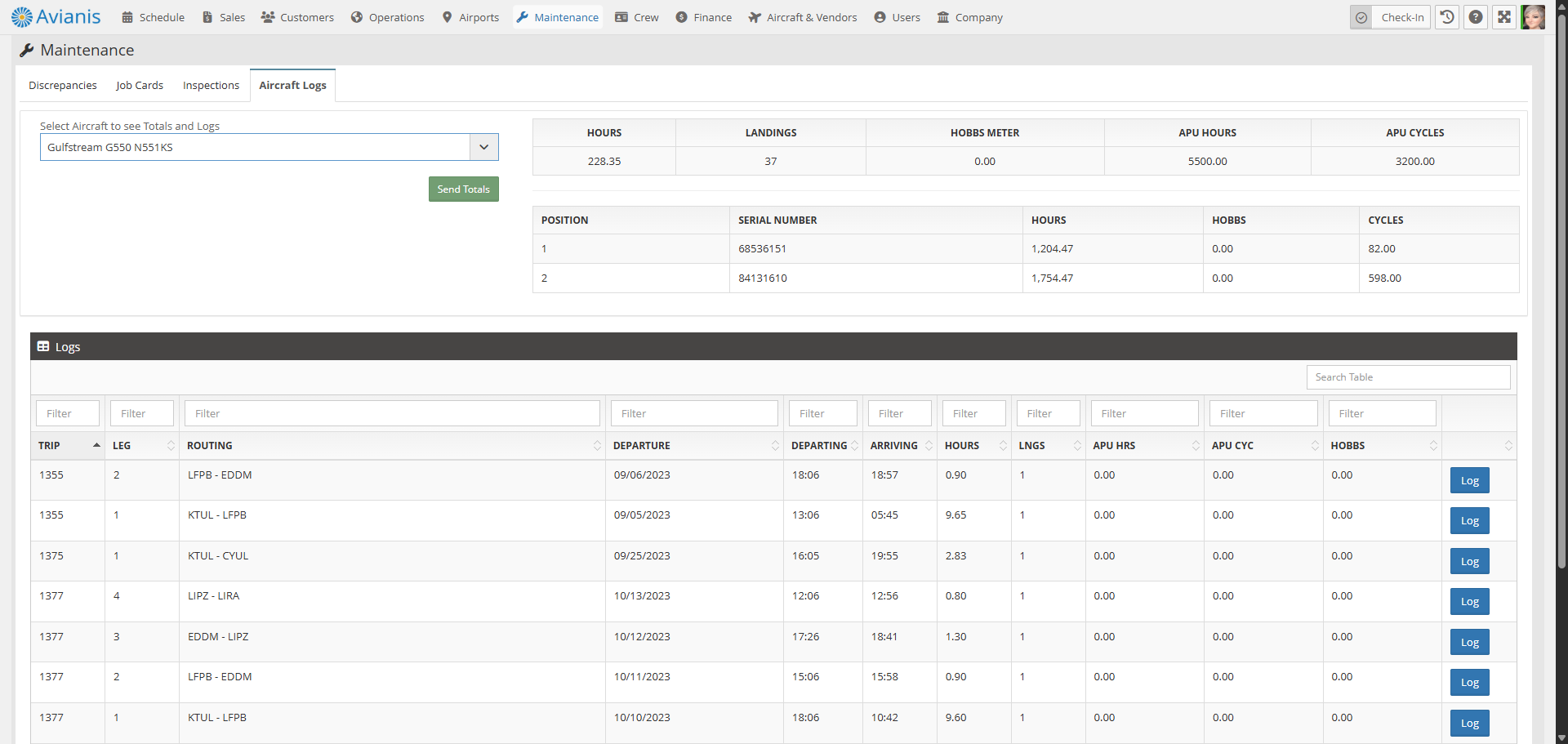

  1. Access Maintenance > Aircraft Logs

  2. Select an aircraft and click "Send Totals"

3. Access the activity feed located at the bottom right-hand side of the aircraft profile to review the results of the data push.

Pull Discrepancies

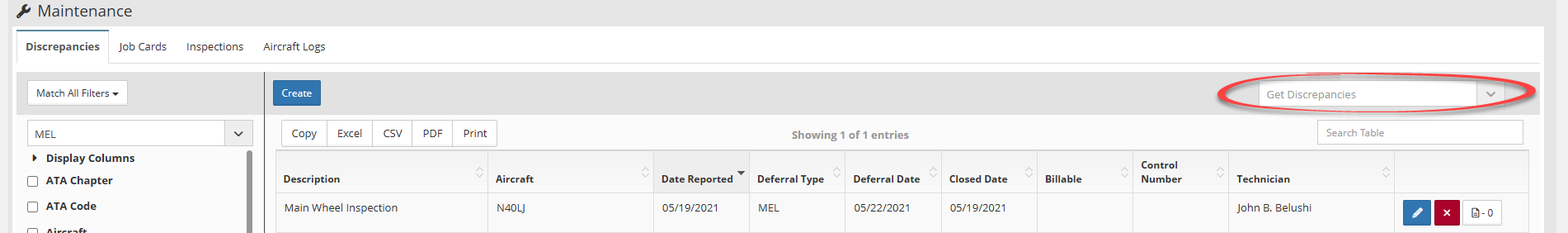

  1. Access Maintenance > Discrepancies

  2. Pull Discrepancies by selecting a tail from the drop-down

  3. Details regarding the pull of information can be found within the aircraft profiles activity feed in the bottom right-hand corner.
