The Weight and Balance (W&B) page helps you verify that your flight's loading is within the safe operational limits of the aircraft.

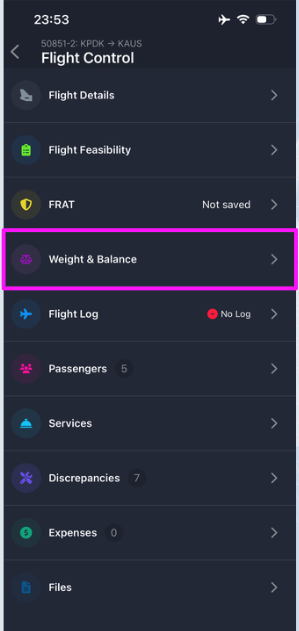

The W&B page is accessible from the Flight Control page.
Conditional Visibility: The W&B selection on the Flight Control page is conditional. It will only appear if the aircraft profile settings for the specific aircraft operating your flight require a Weight and Balance assessment.

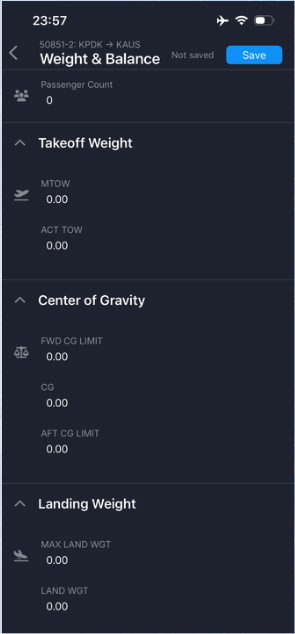

Once you open the W&B screen, you will find four main sections for data entry and reference. You must manually enter the passenger count and all actual weight values.
Passenger Count: This is a manually entered field for the total number of passengers on board.
This section provides limits and requires input for the aircraft's takeoff weight:
MTOW: Maximum Takeoff Weight
ACT TOW: Actual Takeoff Weight
This section provides the acceptable range for the aircraft's center of gravity and requires your calculated input:
FWD CG LIMIT: Forward Center of Gravity Limit
CG: Center of Gravity
AFT CG LIMIT: Aft Center of Gravity Limit
This section provides limits and requires input for the aircraft's expected landing weight:
MAX LAND WGT: Maximum Landing Weight
LAND WGT: Actual Landing Weight
The application validates your entered data against the maximum limits.
Error on Save: If you attempt to save the W&B data and any of your actual numbers (ACT TOW or LAND WGT) are greater than their corresponding maximum numbers (MTOW or MAX LAND WGT), an error notification will appear. You must revise your entered numbers to comply with the aircraft's maximum limits before the data can be successfully saved.
